Dual Offset Bow Panel Mount

• ***Gimbal Brackets are pictured for reference only. You must provide your own or order our HD Gimbal Brackets***
• Upper unit is offset to the right side to provide additional clearance near the trolling motor.
• Top unit can be shifted within a range in relation to bottom unit.
• After top unit offset is determined, both units can also shift from left to right as one cohesive unit.
• Constructed of high-grade aluminum and stainless steel mounting hardware with a powder coated finish
• Designed with our state of the art 3D software and manufactured on site at Boatlogix.

• Provided with a base flange that bolts to the boat to provide a secure connection.
• The panel plate bolts to the base flange and the adjustable support assembly connects to the panel plate.

• The completed assembly is secured to the boat with stainless steel bolts, washers, and Nylon locking nuts. No screws to loosen, strip out, or rip out.

• The dual mount system is supported and connected to the panel plate with an adjustable support assembly to allow the units to move front to back and adjust the viewing angle as desired.
• The wire way provides a large opening to allow for multiple cables to easily pass through the panel plate to the units.
• The wire way is covered by a rubber and aluminum cover with a powder coat finish.
• Sealing gaskets are provided for installation between the boat and the base flange and between the base flange and the panel plate to seal these areas.

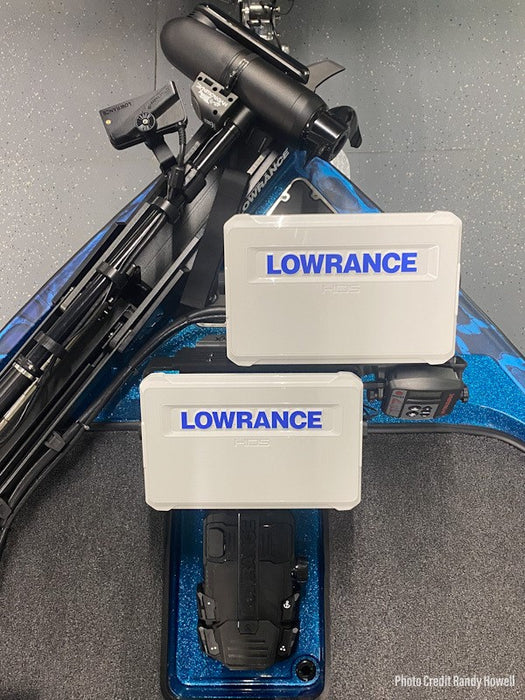

This bow mount is an offset version of our standard dual stacked mount. Meant for those who may have clearance issues at the bow or for those who prefer the offset look.
